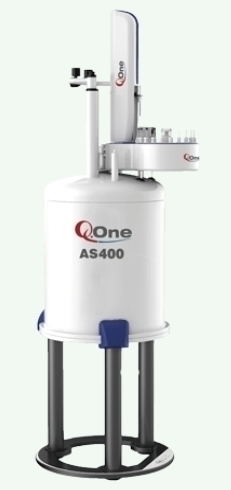

The Spectrometer 400/500/600 MHz – Q.One is a High-Field Nuclear Magnetic Resonance (NMR) device designed for physicochemical analyses of samples with high precision. It is ideal for a wide range of scientific applications, including quality assurance and control, quantitative studies, and advanced research in Materials Science and Analytical Chemistry.
Key Applications
- Physicochemical composition analyses
- Purity testing
- Quality control tests
- Advanced quantitative studies
- Modern research in porous materials, polymers, and chemical compounds
Technical Specifications
Control and Communication System
- Ethernet-based digital transmitter with integrated CAN controller receiver.
- High-speed Gigabit network connection.
- Expandable transmitter and receiver channels (up to 3 channels).
- Modular design for easy maintenance.
Transmitter Specifications
- Intermediate frequency: 922.5 MHz
- Event resolution: 25 ns
- Frequency resolution: 0.01 Hz
Receiver Specifications
- Dynamic range: ≥80 dB
- Bandwidth: 120 Hz to 2.5 MHz
- Digital resolution: 14 bits
RF Amplifiers
- Wideband amplifier: 10 MHz to 410 MHz
- Maximum CW power: 30 watts
