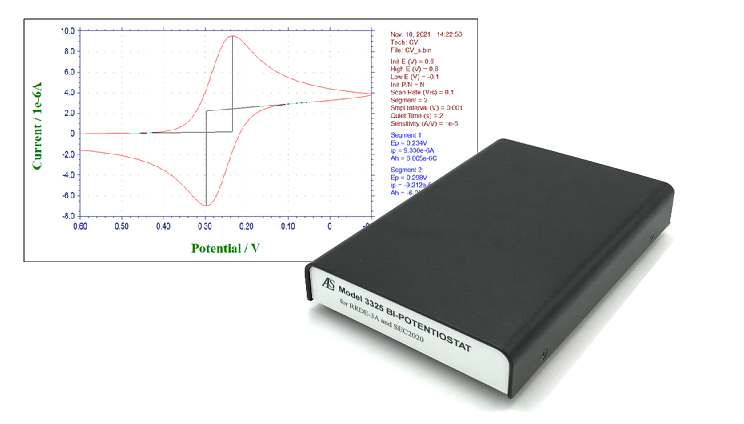

Model 3325 Bi-Potentiostat for RRDE-3A and SEC2020
Model 3325 Bi-Potentiostat for RRDE-3A and SEC2020
The handheld size of the instrument allows it to be connected to a computer using a USB cable for communication and power supply. It is ideal for a field measurement and educational device in combination with a notebook PC.
It also has a remote function for the control of the RRDE-3A Rotating Ring Disk Electrode Apparatus and SEC2020 Spectrometer system.
- Features
- Content
- Specifications
- Configuration
- Software data processing
- Bi-Potentiostat
- High-performance
- Compact design
- RRDE & SEC2020 system control
- Repeated or sequence measurement
- Macro command
- Levich and Koutecky-Levich plot
Model 3325 contents
Description | Qty | |
A | Model 3325 Bi-Potentiostat | 1 |
B | Cell cable | 1 |
C | USB cable | 1 |
D | Ground wire (installed on the main unit) | 1 |
Catalog No. | Description |
013817 | Model 3325 Bi-Potentiostat |
013820 | Model 3325 Software |
Hardware | |
Potential range | ±5 V |
Current range | ±50 mA |
Output voltage | ±11 V |
Sensitivity range | ±2.5 nA ∼ ± 0.05 A (8 ranges) |
Input impedance | 1 x 1012 Ω |
Minimum potential resolution | 100 µV |
Maximum sampling rate | 16 bit @ 100 kHz |
Background current | < 80 pA |
Current resolution | 0.3 pA |
Scan rate (CV) | 1 x 10-6 ∼ 80 V/sec |
Operating system | WindowsTM 10, WindowsTM 11 |
Interface | USB 2.0 |
Power | supplied from USB port |
Dimensions (W x D x H) | 170 x 110 x 25 mm |
Weight | 0.35 kg |
Accessories | USB cable, Cell cable, Ground wire |
Software Techniques & Measurement range | |
CV (Cyclic Voltammetry) | 1 x 10-6 ∼ 80 V/sec |
LSV (Linear Sweep Voltammetry) | 1 x 10-6 ∼ 80 V/sec |
i-t (Amperometric i-t curve | 0.01 ∼ 1 x 107 sec (Sampling time) |
OCPT (Open Circuit Potential) | 1 ∼ 5 x 105 sec (Sampling time) |
RDE | 0 ∼ 10 V output |
Configuration for the experimental system
Model 3325 control terminal
Synchronize measurement and control of the external equipment such as SEC2020 Spectrometer system and RRDE-3A Rotating Ring Disk Electrode Apparatus can be performed using the CB-VS remote cable (15 pin).
Cell control terminal of Model 3325.
Schematic of the terminal pin number.
Remote control of RRDE-3A Rotating Ring Disk Electrode Apparatus
Remote connection of Model 3325 and RRDE-3A.
Pin number and corresponding trigger cables.
Trigger control of SEC2020 Spectrometer system
Trigger connection of Model 3325 and SEC2020.
For both experimental configuration the Cat. No. 013818 CB-VS Remote cable (15 pin) is required.
Catalog No. | Description |
013818 | CB-VS Remote cable (15 pin) |
Model 3325 Bi-Potentiostat software data processing
Model 3325 is digital controlled by PC software, whereas its price is almost same to the analog equipment. Dual channel CVs measured by Bi-Potentiostat can be plotted simultaneously on the software window. It is easy to overlay the CV curves for data comparison and the peak fitting function necessary for the data analysis is also included. In the setup screen, the rotation speed of the RRDE and gas purge ON/OFF can be controlled. The Model 3325 software is quite easy-to-use, even the beginners of the electrochemical measurements can easily work on it for the first time try.
Levich and Koutecky-Levich plot
Rotating disk electrode (RDE) is the method to obtain a forced convective voltammogram by which the data analysis is performed using the Levich or Koutecky-Levich plot, and also can calculate the parameters such as diffusion coefficient and electron number.
Rotating Disk Electrode Control
Rotation speed (rpm) and time of the rotating rdisk electrode can be controled by the software. Also, the quiet time and rotation state between and during the run can be selected.
Spectrometer Control
When "Spectrometer Control" is executed with "On" selected, the TTL signal output is at a High level (5 V) during the measurement and at a Low level (0 V) during all other times. This command is used to control the spectrometer when performing spectroelectrochemical measurements. It works with CV, LSV, and i-t techniques.
Model 2323/2325 measurement data can be loaded and analyzed
Model 3325 software enables loading and analysis of data (.DY20) measured and saved by our previously sold models 2325. Comparison of data acquired with the Model 2325 and measured data with the Model 3325 can also be easily performed.
