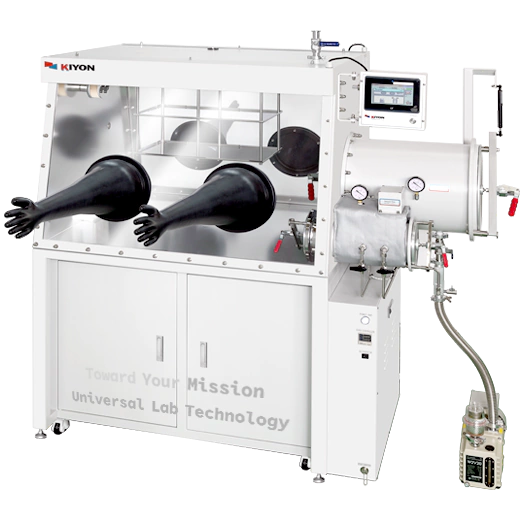

KK-011AD / 2Person, 4-Port Glovebox (2-Port Double-sided Glovebox)

[Key Features]

• Glovebox for 2 persons with 4 ports (2-port double-sided glovebox).
• Maintains levels below 1 ppm of oxygen and moisture.
• Removal capacity:
  • Oxygen: up to 2,500g.
  • Moisture: up to 80L.
• Interior with electropolishing to eliminate impurities.
• Supports up to 150kg of weight (reinforced structure for loads above 150kg).
• Data logging via USB (oxygen, moisture, pressure, and alarms).
• Fully automatic and regenerable purifier.
• Ergonomic design for user convenience.
• Additional options and accessories for safety and automation.
• ECO mode to reduce energy consumption.
• Fast response: less than 24 hours.

[Specifications]

Basic Composition

• Dimensions: 1,200(L) x 900(H) x 1,200(D) mm
• Material: SUS304
• Windows: Polycarbonate (PC) or safety glass
• Gloves: 2 pairs of butyl rubber
• External Light: 2 units (LED)
• Service Port: KF(NW40): 2 units
• Leak Test: 0.05 vol%/h according to ISO 10648-2

Antechamber

• Dimensions: 390 x 600 mm
• Vacuum Capacity: 1 x 10⁻³ torr
• Material: SUS304

Mini-Antechamber

• Dimensions: 150 x 290 mm

Purifier System

• Purity Level: Less than 1 ppm of O₂ and H₂O
• Catalyst: Oxygen catalyst and molecular sieve
• PLC Control: Automatic
• Control Panel: 7˚ full-color touchscreen
• Purifier Regeneration: Automatic, programmed on PLC
• Blower Speed Control: 1/4 HP
• Vacuum Pump: 180 ℓ/min

Stand

• Dimensions: 1,200(L) × 936(H) × 1,200(D) mm
