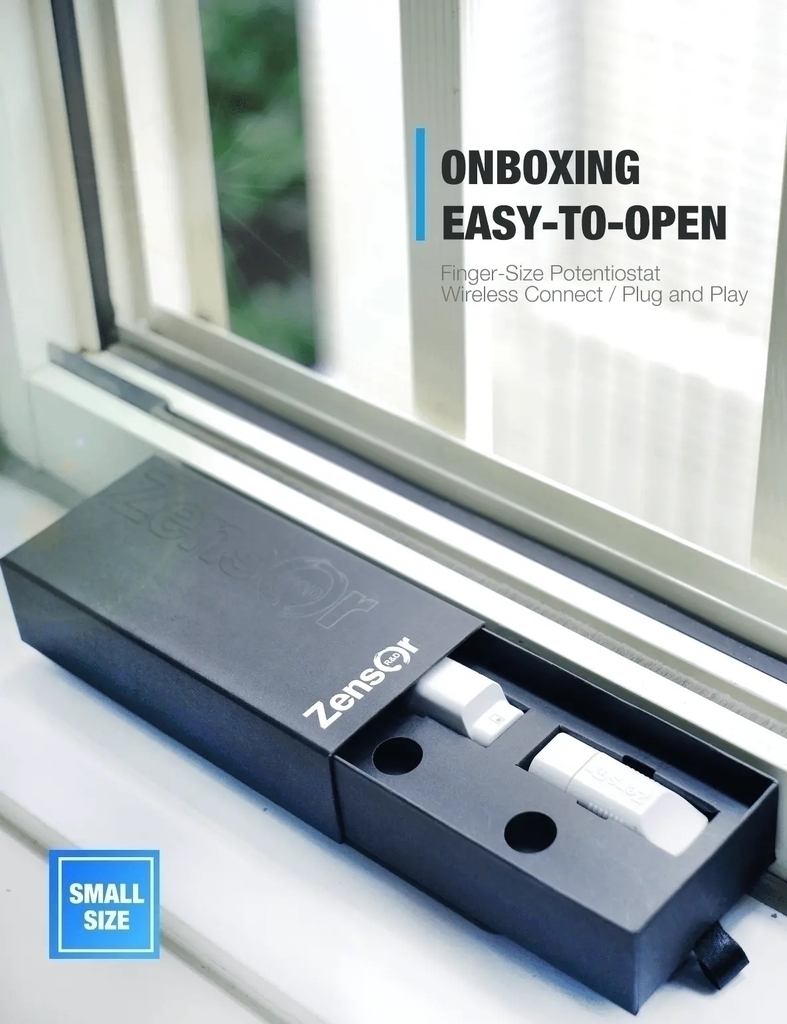

In order to meet the latest academic research trend and product development needs, we combined our partner and own team product development experience to launch the smallest wireless potentiostat, wich has outstanding accuracy and sensitivity required by sensor development.
| Electrochemical Methods | (A)Cyclic voltammetry(CV) (B)Amperometry(IT) (C)Open circuit potentiometry(OCP) (D)Differential pulse voltammetry(DPV) (E)Square wave voltammetry(SWV) (F)Linear sweep voltammetry(LSV) |
|---|---|
| Range | (A)Voltage range scan :+2~-2(v), OCP voltage range:+1800mV~-1800mV (B)Current range:1x10-3 ~1x10 -9 (A) (C)Current resolution:0.5% of current range (D)Maximum wireless distance:20m |
| Operation system | window 7 and / or above |
| Communication | USB1.1 and 2.4G RF |
| Power | (A)Remoter input: DC 5V,2A Connector input:DC 5V,0.5A (B)Battery life:1~6 Hr |
| Dimension | Remoter: 57.5 x 22.5 x 14.5mm Connector: 61 x 20 x 19.5mm |
| Weight | Remoter: ~150g Connector:~25g |
