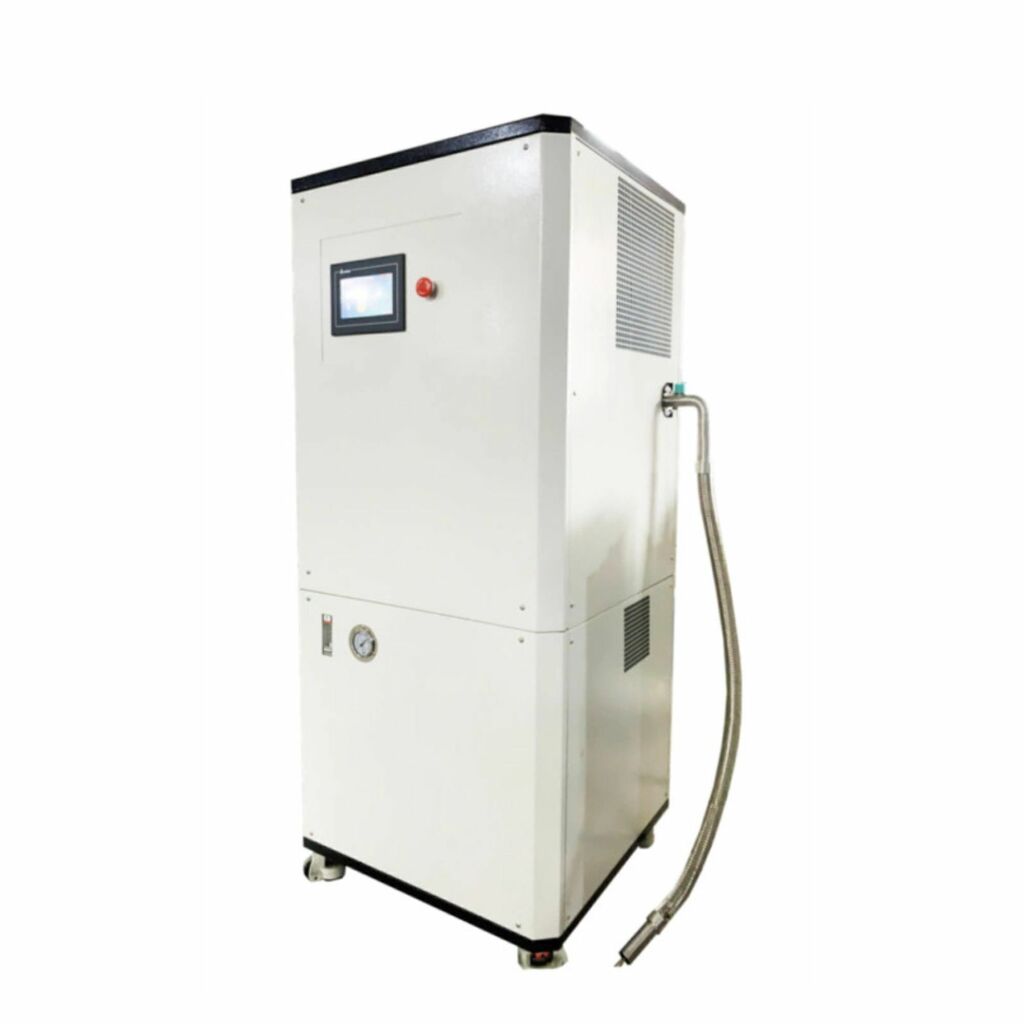

Liquefier Model ACLN-14

One-button automatic control and efficient nitrogen liquefaction system.

Technical Specifications

Production Capacity: 14 L/day
Internal Dewar: 25 liters
Nitrogen Generation System: Hollow Fiber Membrane
Rated Power: 2.2KW - Power Supply: AC220V-60Hz
Pre-cooling time: 60 minutes
Cooling Mode: Air Cooling
Nitrogen Purity: 99%
Air Pressure: 6 bar
Dew Point: <-70°C
Flow Rate: 6.5 - 15 L/min
Weight: 200 kg
Size: 74 x 74 x 176 cm
Custom Configuration Available: PSA, Power Supply, Nitrogen Purity, Internal Dewar

Detailed Description

The ACLN-14 series is an intelligent LN2 generator that uses a reliable and efficient hollow fiber membrane to separate nitrogen and oxygen, producing high quality nitrogen gas, which is then liquefied using our powerful cooling system. The liquid nitrogen is stored in a vacuum insulated tank (25 liters) and can be dispensed using a 1.5 meter vacuum insulated hose. Other dispensing methods are available upon request.

Features

High quality air compressor that ensures a stable air supply during prolonged operations.
Hollow fiber membrane nitrogen generation system that produces high quality nitrogen directly from air.
Nitrogen gas with 99% purity to ensure high quality liquid nitrogen for various applications.
Advanced nitrogen injection system for pre-cooling the gas prior to liquefaction.
Integrated 25-liter liquid nitrogen dewar for easy storage and transfer.
All cryogenic parts are vacuum insulated to minimize loss of liquid nitrogen.
Color touch screen control with one button for automatic control.
Air cooling, no need for water chillers.
Small footprint and low noise level (< 65 dB).

Alarm and Security System

Alarm systems for temperature, pressure and system failures.
Intelligent liquid level sensor system ensures automatic start and stop.

Liquid Nitrogen Generator Specifications

Hollow Fiber Membrane Nitrogen Generation System: Nitrogen Purity: 99%, Dew Point: -70°C, Air Pressure: 6bar, Flow Rate: 6.5L-15L/min
External Air Compressor: 1.5KW Oil-Free Air Compressor
Refrigeration Compressor: Danfoss or equivalent, Model: 1.5P
Nitrogen Liquefier: Minimum Refrigeration Temperature: -196°C, Refrigeration Capacity: 70W, Working Rate: 1.5KW (Mixed Refrigerant)
Integrated Dewar: 25L capacity
Liquid Nitrogen Output: 8-10 LPD
Dimensões (L*W*H): 500 x 620 x 1300mm / 550 x 620 x 1500mm
Package Dimensions (L*W*H): 750 x 870 x 1600mm / 800 x 870 x 1800mm
Operating Voltage: AC220 1P 50Hz or customized
Working Temperature: < 33°C
Cooling Type: Air Cooling
Liquid Nitrogen Pressure: 0.1 - 1 bar adjustable
Ambient Temperature Range: 4°C - 35°C
Noise: < 65 db

FEATURES

Maintenance free cryo-cooler

Advanced mixed type pluse tube cryo-cooler,no leakage risk of helium or refrigerant gas , expected continuous running time is over 120,000 hours

Large dewar tank

High capacity liquid dewar tank with precise level gauge,it produce and storage liquid nitrogen as per setting level

High purity liquid nitrogen

PSA nitrogen system generates nitrogen gas between 99.5% to 99.995%, N2 purity can be read on touch screen

Clean liquid nitrogen

Additional particle filter and bacterial filter installed to ensure only clean and bacterial free nitrogen gas is liquefied

WiFi and 4G internet

10 inch HMI touch screen with WiFi and 4G function. You can monitor and operate the generator remotely on mobile phones or laptops anytime, anywhere

Automatic dispensing

liquid nitrogen can be dispensed out by touching screen thanks to cryogenic solenoid valve ,and automatically stops as per value you set

Technology of ACLN Nitrogen Liquefier

PSA Nitrogen Generation

Overview PSA (Pressure Swing Adsorption) Nitrogen Generator is a device used to produce high-purity nitrogen gas from compressed air. It operates based on the principle of pressure swing adsorption, which involves alternating pressure to separate nitrogen from the other gases in the air.

How PSA Cycle Works

The PSA cycle involves coordinated pressure swings in the adsorbent beds to selectively adsorb and desorb gases. There are four main steps:
Feed Pressurization – The bed is brought online and feed air enters, increasing the pressure. Nitrogen passes through while oxygen and argon are adsorbed.
Production – The bed stays pressurized and continues producing nitrogen until the adsorbent nears saturation.
Depressurization – The bed is taken offline and pressure drops, causing adsorbed gases to desorb.
Regeneration – A small amount of product nitrogen purges the bed, prepping it for the next cycle.

Advantages PSA Nitrogen Generators offer several advantages, making them a popular choice for industries requiring a reliable source of high-purity nitrogen. Here are some key advantages: · Cost-Effective: PSA nitrogen generators can significantly reduce costs compared to purchasing nitrogen cylinders or liquid nitrogen. On-site generation eliminates transportation, storage, and handling costs. · Continuous Supply: These generators provide a continuous, on-demand supply of nitrogen, ensuring that operations are not interrupted by the depletion of gas supplies. · High Purity Levels: PSA technology can produce nitrogen at various purity levels, often up to 99.999%, which can be tailored to specific application requirements. · Energy Efficiency: PSA systems are generally more energy-efficient than other nitrogen production methods, reducing operational costs over time. · Low Maintenance: PSA nitrogen generators have relatively low maintenance requirements, especially when compared to other nitrogen production methods. This reduces downtime and maintenance costs. · Compact and Scalable: These systems are typically compact and can be easily integrated into existing facilities. They are also scalable, allowing businesses to increase nitrogen production as needed. · Environmental Benefits: On-site nitrogen generation reduces the carbon footprint associated with transporting and storing nitrogen cylinders or liquid nitrogen. This contributes to more sustainable and environmentally friendly operations. · Safety: Generating nitrogen on-site reduces the risks associated with handling high-pressure cylinders or liquid nitrogen, enhancing overall workplace safety. · Flexibility: PSA nitrogen generators can be adjusted to produce nitrogen at different purities and flow rates, providing flexibility to meet changing operational needs.

Integrated Filtration and Drying Module

Overview The most important purpose of compressed air treatment is to remove pollutants and moisture from the compressed air. Condensed water in compressed air systems can corrode, leading to microbial reproduction and long-term harm to industrial production. High humidity of compressed air can lead to failure of air control components, increased wear, or other failures in the production process.

1. High performance requirement:

Dry air pressure dew point requirements vary with different applications. However, these requirements always include that the minimum energy consumption is achieved and that the dried compressed air must be ready for immediate use.
The prerequisite for achieving these requirements is a complete product range of different grades, as well as the manufacturer's accurate grasp of the performance characteristics of the dryer under different working conditions.

2. High Efficiency and Energy Saving: The DRYPOINT® M PLUS diffused drying membrane pack with built-in nanoscale filter cartridge is an innovative solution that integrates filtration and drying in one housing. It requires only a small amount of backblowing to achieve reliable compressed air drying, does not consume electricity, and does not contain desiccant harmful to the environment. The built-in nanoscale filter improves the reliability of the drying film set and compressed air quality, while also increasing the long-term stability of the high permeability hollow fiber tube. The superior properties of DRYPOINT® M PLUS are also suitable for air-breathing drying processes.

Reliable PLC Controlling Units

Overview Programmable Logic Controller, also known as PLC, is a type of industrial computer used to control and automate manufacturing processes, machinery, and other systems. Integrated to modern industrial automation, PLC offers a robust, flexible, and cost-effective solution for industrial automation and control. Integrated Siemens CPU, Weidmueller connect power, Schneider contactors and breakers and ABB interface relay, Allum's LNS series liquid nitrogen generators' PLC units exhibite unparalleled advantages than competitive products in operation, LN2 generation, liquid level control, working efficiency and reliability.

Advantages of PLC

1. Reliability and Durability
Robust Design: PLCs are designed to operate in harsh industrial environments, including extreme temperatures, humidity, dust, and electrical noise.
Long Lifespan: PLCs have a long operational lifespan with minimal maintenance requirements, ensuring continuous operation.
2. Real-Time Operation
Immediate Response: PLCs process inputs and outputs in real-time, providing immediate response to changes in the controlled process.
Consistent Performance: Ensures consistent and precise control of industrial processes.
3. Ease of Maintenance and Troubleshooting
Diagnostic Functions: PLCs come with built-in diagnostics and monitoring tools to detect and report faults, simplifying troubleshooting.
Modular Replacement: Faulty modules can be quickly replaced without affecting the entire system, minimizing downtime.
4. Enhanced Safety
Fail-Safe Mechanisms: PLCs can be programmed with fail-safe operations to ensure safety in case of system faults or failures.
Compliance with Safety Standards: Many PLCs are designed to comply with international safety standards, ensuring they meet regulatory requirements.
5. Data Collection and Monitoring
Data Logging: PLCs can log data from the controlled processes, which can be used for analysis, optimization, and predictive maintenance.
Remote Monitoring: PLCs can be accessed and monitored remotely, allowing for real-time oversight and adjustments.
6. Flexibility and Adaptability
Programmability: PLCs can be easily reprogrammed to handle different tasks, making them highly adaptable to changing production needs.
Modular Structure: Many PLCs have a modular design, allowing for easy expansion or reconfiguration by adding or removing modules.
7. Scalability
Suitable for Various Applications: PLCs can be used in small, medium, and large-scale automation systems, from simple control tasks to complex processes.
Expandable: Additional I/O modules and communication interfaces can be added to meet increasing demands.
8. User-Friendly Programming
Standardized Programming Languages: PLCs use standardized programming languages like Ladder Logic, Function Block Diagram (FBD), and Structured Text (ST), which are relatively easy to learn and use.
Simulation and Testing: Many programming environments offer simulation tools to test and debug the control logic before deploying it to the actual system.
9. Interoperability and Communication
Wide Range of Communication Protocols: PLCs support various communication protocols (e.g., Modbus, Ethernet/IP, PROFINET, DeviceNet) to integrate with other devices and systems.
Network Integration: PLCs can be integrated into larger networked systems, enabling centralized monitoring and control.

Advanced Pulse Tube Cryocooler

Overview Pulse Tube Cryocoolers (PTCs) are advanced, reliable, and efficient systems with unique design, which eliminates moving parts in the cold section, provides significant benefits in terms of durability, low vibration, and noise, making them ideal for sensitive and critical applications.

Performance

Pulse Tube Cryocoolers (PTCs) are advanced, reliable, and efficient systems with unique design, which eliminates moving parts in the cold section, provides significant benefits in terms of durability, low vibration, and noise, making them ideal for sensitive and critical applications.

Advantages 1. No Moving Parts in the Cold Section: Reduced Mechanical Wear: Since PTCs have no moving parts in the cold region, there is minimal mechanical wear, leading to increased system reliability and longevity. Low Maintenance: The absence of moving parts reduces the need for regular maintenance and repairs, lowering operational costs and downtime. Allum's LN2 generators coolers have an expected over 100,000 hours life span. 2. Low Vibration and Noise: Suitable for Sensitive Applications: The low vibration and noise levels make PTCs ideal for applications that require a stable environment, such as precision instrumentation, infrared detectors, and scientific experiments. Environmental Benefits: Reduced noise contributes to a quieter and more comfortable working environment. 3. High Reliability: Long Service Life: The design's inherent reliability ensures a long service life, making PTCs dependable for critical applications. Stable Operation: High reliability translates to consistent performance with minimal risk of unexpected failures. 4. High Efficiency: Energy Efficiency: PTCs are designed to optimize heat exchange and thermodynamic efficiency, resulting in a high coefficient of performance (COP). Energy Savings: The high efficiency of PTCs helps reduce energy consumption, leading to cost savings and a lower environmental footprint.
