Industrial Helium Purifier
Introduction
The industrial Helium Recycling equipment adopts the industrial standard design, compact structure and full intelligent control, and adopts the "one to one" or "one to many" method to recover, purify and recycle the helium-rich tail gas in several helium working sections. The equipment has achieved batch production, and obtained EU CE certification.
Features
The equipment employs advanced technologies such as high efficiency water removal, dust removal, membrane separation technology and full automation control, which is characterized by miniaturization, low energy consumption, high reliability, full automation and low maintenance cost.
Application
Optical fiber, air conditioner leakage test and other fields requiring Helium gas recovery, purification and recycling.
Specifications
| Model | HCH-20L |
| Capacity（L/min） | 20 |
| Nominal pressure（bar） | 7 |
| Inlet purity | ≥30% |
| Outlet purity | ≥99% |
| Efficiency | ≥90% |
| Power consumption | 1.6Kw |
| Electrical Rating | 220VAC,1Ph, 50Hz |
| Operation | Fully Automatic |
Large-scale VOCs Purification Equipment
Introduction
VOCs (volatile organic compounds) recycle and purification equipment is independently developed by VACREE with unique and comprehensive VOCs processing technology. It can recycle and concentrate more than 90% of Hydrogen, Nitrogen and Hydrocarbon components contained in off-gas. The Hydrogen concentration can be purified from 30% to 99.999%, and the processing capacity reaches up to 1000m3 / hr.
Features
High reliability, high operation flexibility and low maintenance cost. It can be widely used in the field of comprehensive treatment of volatile organic compounds and has high benefits of environmental protection and economy.
Applications
Carbon nanotubes, pharmaceuticals, fine chemicals, etc.
Technical parameters
|
ITEM |
PARAMETERS |
UNIT |
|
Operating Pressure |
1.0-3.0 |
Mpa |
|
Flow Rate |
100-1000 |
Nm3 /Hr. |
|
C2+ Recovery Rate |
≥90% |
% |
|
CH4 Recovery Rate |
≥90% |
% |
|
Nitrogen Recovery Rate |
≥90% |
% |
|
Inlet Hydrogen Purity |
≥30% |
% |
|
Outlet Hydrogen Purity |
≥90-99.999% |
% |
|
Operation Mode |
Fully automatic, remote monitor |
|

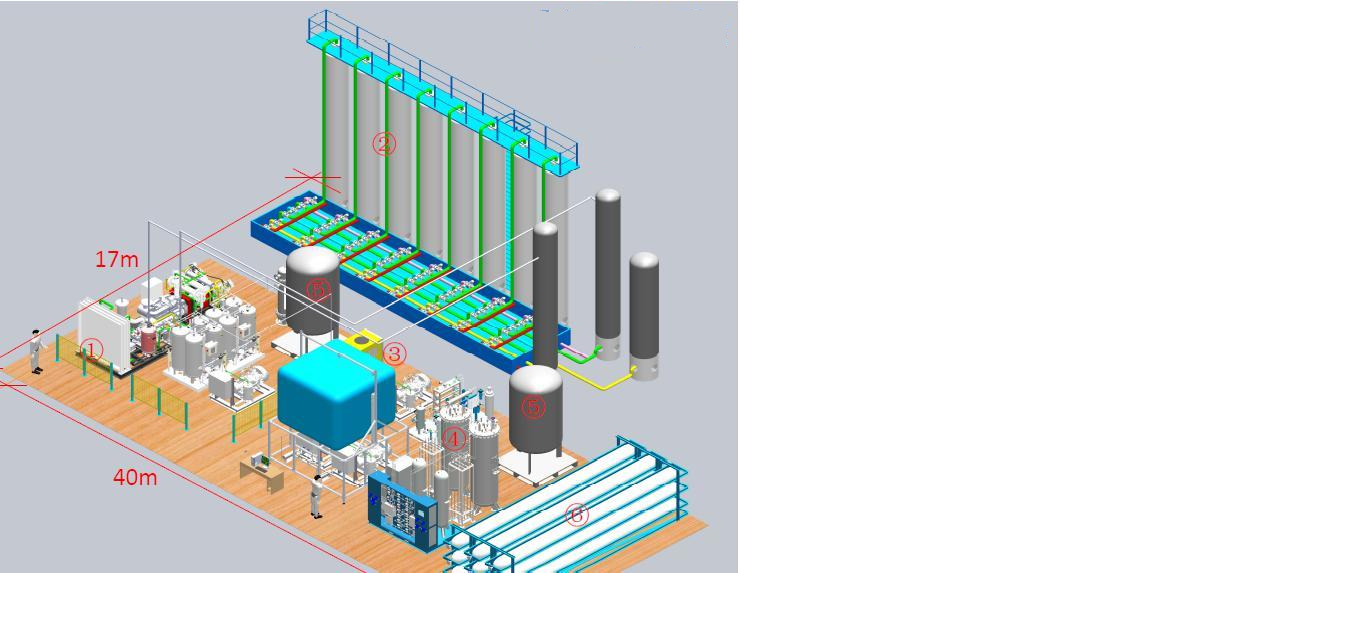

Helium Extraction System
Introduction
Helium gas is non-renewable and valuable resource, which playing a quite important role in our society. Helium gas has a lot of applications such as scientific research, cryogenic superconductivity, space leakage test, medicine, welding, automobile industries worldwide.
Vacree Helium extraction system can extract crude Helium gas from the bill off gas of the LNG or Helium-bearing gas well directly through the PSA & membrane separation coupling technologies firstly , then improve the crude Helium gas into 99.999% （5.0 grade）. The cryogenic condensation adsorption, membrane separation & PSA technologies are employed in the extraction system. The system consists of crude Helium gas extraction unit, catalytic dehydrogenation unit (If H2 included) and refined Helium gas purification unit (cryogenic Helium Purifier). If the output is LHe, we can also offer the solution of the Helium Liquefaction unit as an option.
The feasibility study of extracting helium from a BOG of natural gas is quite complicated. But the most crucial thing is about the investment return rate and system technical reliability.
Our proposal will make our clients have a big economic benefit with low operating cost. Pls feel free to contact us for more details.
Specifications
He Re-liquefaction
Introduction
Based on years of accumulation on the cryogenic condensation, adsorption, solidification technology, VACREE can provide bespoke Helium recovery, purification and re-liquefaction system which can realize Helium recycling and reuse, greatly saving operation cost.
Features
♦ Fully automatic. Easy-to Use.
♦ Continuous Operation
♦ Liquefying and Transferring Liquid Helium
♦ Malfunction Alarm
♦ Gaseous Helium intake will be automatically stopped, when reaches the setting level
♦ Scalable Remote Monitoring Function
Specification
Vertical Type
Horizontal Type
The Inlet Helium purifier interfaced with the Helium Re-liquefier can be as option.
Cryogenic Helium Purifier
Introduction
Cryogenic Helium Purifier can improve the impure Helium into grade 5.5 (5.5 helium = 99.9995% purity) ultra-pure Helium gas by the following steps:
After pressurized by the inlet compressor, the impure Helium gas captured is removed moisture and oil through the oil-water separator, then it flows into the dryer unit to remove residual moisture and carbon dioxide, taking advantage of cryogenic condensation and freeze technology to remove the residual air impurity from the cold box pre-cooled by LN2 , which consists of a vacuum insulation vessel, the heat exchanger, phase separator and adsorber cylinder. Finally output the ultra-pure Helium gas and filling the gas cylinder bundles or container.
The main components of purifier include dryer unit, cold box, regeneration vacuum pump, gas distribution panel and control cabinet with compact skid-mounted structure.
Application
Cryogenic Helium purifier is typically applied in recovery and purification of the Helium for scientific research (specially to recover the impure Helium from refrigeration and liquefaction plant of superconducting machine), nuclear magnetic resonance (NMR), Helium liquefaction, balloon industry, optical fiber preforms sintering, leakage detection, etc.
Specifications
| Description | Unit | Index |
| Capacity | Nm3/Hr. | 30-200 |
| Outlet Purity | % | ≥99.9995% / N5.5 grade |
| Working Pressure | bar | 25-200 |
| Pressure Drop | bar | ≤2 |
| Absorbent Type: | Activated charcoal/Molecular sieve | |
| Operation | / | Fully automatic 24Hrs Running Optional |
| Certification/Standard | CE/PED, ASME, JIS, GB available |
